2000N 1KJ Resistance Spot Welding Machine Ultrasonic Metal Spot Welder Odm

Product Categories
Jiangsu Zhiyao Intelligent Equipment Technology Co., Ltd
Contact Now

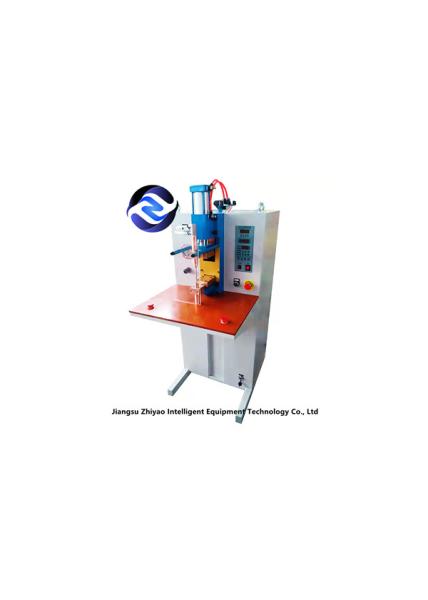

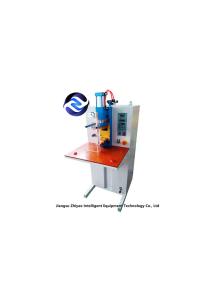

2000N 1KJ Resistance Spot Welding Machine Ultrasonic Metal Spot Welder Odm

  • 1
  • 2

Brand Name : zhiyao

Model Number : ZYC-1010Q

Place of Origin : China

MOQ : 1set

Price : ＄2600/set(The more you buy, the cheaper you get)

Payment Terms : T/T

Supply Ability : 100 sets / month

Delivery Time : 5-8 work days

Packaging Details : Wooden packing

Name : Energy Storage Spot Welder

Input Power : 380V/AC 50HZ

Rated Power : 1000J

Secondary Short-circuit Current : 10KA

Electrode pressure : 500-2000N

Electrode working stroke : 50MM

Electrode arm extension length : 200MM

Maximum welding capacity : 1.5+1.5stainless steel

Air source : ≥0.5MPa

Contact Now

Capacitive energy storage spot welding machine, is the use of power frequency alternating current through the rectifier rectifier after charging to the capacitor, the stored electrical energy is then discharged by the welding transformer into a low electrical voltage, the energy is more concentrated and stable pulse current, through the contact point of the welded workpiece to generate resistance heat to weld the metal. Features: No need for current limiting resistors to reduce heat generation. · The solder joints are not blackened, eliminating the need for sanding. · The internal power supply voltage regulator device ensures that the output voltage is constant and the welding consistency is good. · Full digital control, good precision. World famous factory original devices, quality assurance. · This machine is designed to operate simply, eliminating complex tuning and teaching procedures, and the welding effect is good. · Main welding materials: stainless steel, brass, alloy copper, aluminum alloy, etc.
Model Input Power Rated power Secondary short-circuit current Electrode pressure Electrode working stroke Electrode arm extension length Maximum welding capacity Air source Cooling water pressure Cooling water flow unit price
ZYC1010Q 380V/AC 50HZ 1000J 10KA 500-2000N 50MM 200MM 1.5+1.5stainless steel ≥0.5MPa / / $2,600
